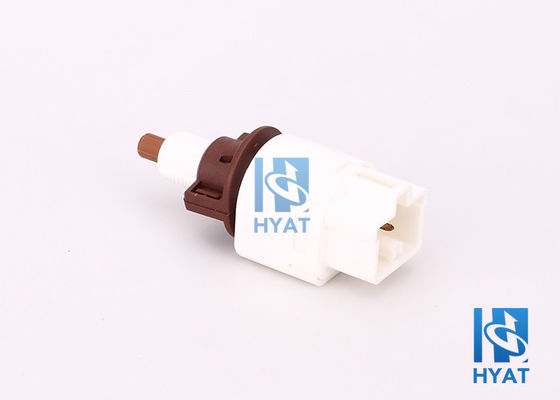

Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000
  • Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000
  • Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000
  • Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000
  • Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000

Plastic mechanical brake​ light switch OE71742588/4534 54/37740-73H10-000

Place of Origin CHINA
Brand Name HYAT
Certification ISO/TS 16949:2009
Model Number HY 12.067
Product Details
OE:
4534 54
Brand:
Citroen
Normal Opened/Locked:
1 Opened And 1 Locked
Highlight:

car brake light switch

,

stop lamp switch

Payment & Shipping Terms
Minimum Order Quantity
200 PCS
Price
NEGOTIATION
Packaging Details
WHITE BOX
Delivery Time
45 DAYS
Payment Terms
T/T or L/C
Supply Ability
20000 PER MONTH
Product Description



Plastic mechanical brake​ light switch for CITROEN OE 4534 54



Quick Detail:

  • Name: Brake light switch
  • Type: Clutch control
  • OE Number: 4534 54
  • Main Material: Plastic
  • Normal Opened/Locked: 1 Opened and 1 Locked
  • Certificate: ISO/TS 16949:2009



Main Introduction

The purpose of any stop switch is to turn on the brake lights located at the rear of the vehicle.

These lights warn the driver of the car traveling behind, that the vehicle in front is braking and we may be in a situation of danger.



Specifications

Model Number HY12.067
Part Type Clutch control (Engine control)
Operating Mode Mechanical
Control type Pressure switch control
Condition 1 Opened and 1 Locked
Adjustable Unadjustable
Main material Plastic
Number of ports 4
Spanner size
Thread size
Cable Wire none
OEM Vehicle Brand CITROEN,FIAT,GENEERALMOTORS,OPEL,PEUGEOT,SUZUKI,TOYOTA
Warranty 1 year
Market Aftermarket



OE and Applications



CITROEN

4534 54

FIAT

71742588

GENERAL MOTORS

93 194 931

OPEL

47 10 280

PEUGEOT

4534 54

SUZUKI

37740-73H10-000

37740-75H10-000

TOYOTA

84340-09010

84340-09020

84340-09040

84340-09070

84340-19025

84340-49025

84340-49045

84340-69015

84340-69025



CITROEN    SUZUKI
C1 2005-> KIZASHI 2010->
FIAT   LIANA 2002->
SEDICI 2006-> SPLASH 2008->
SEDICI MY2012 2012-> SWIFT IV 2005->
OPEL   SWIFT V 2010->
AGILA B 2008-> SX4 2006->
PEUGEOT   TOYOTA
107 2005-> AURIS I 2006->
SUZUKI   AURIS II 2012->
CARRY 1999-> AVENSIS II 2003->2008
GRAND VITARA I 1998->2003 AYGO 2005->
GRAND VITARA II 2005-> CAMRY V 2006->2006
IGNIS 2000->2003 CAMRY VI 2006->2011
JIMNY 2003-> CAMRY VII 2011->
TOYOTA   TOYOTA
CELICA 1999->2005 RAV 4 IV 2012->
COROLLA VERSO I 2001->2004 URBAN CRUISER 2009->
COROLLA VERSO II 2004->2009 VERSO S 2010->
COROLLA X 2006-> YARIS II 2005->
COROLLA XI 2012-> YARIS III 2010->
HIACE V 2005-> VAUXHALL
HILUX VII 2005-> AGILA II 2008->
IQ 2009->
LAND CRUISER 120 2002->
LAND CRUISER PRADO 120 2002->2009
PICNIC II 2001->2006
PREVIA II, PREVIA III 2000->2006
PREVIA III 2005->
RAV 4 III 2005->



Quality Standard

As we are OEM manufactory, we also keep aftermarket switch’s quality standard to OEM level. All of switch produced base on OEM processing, production line and inspection. Function inspection will be done for every switch before shipment.

97% of our switch can use more than 100,000,000 cycles.



R&D

We have a complete and experienced R&D team and one lab for auto switch and auto sensor. It effect to high efficiency and precision for analyzing and development of new product.

Supplier Quality Management System Certificate
Ningbo Hongyuan Auto Electronic Technology Co., Ltd. - IATF 16949:2016. Scope: Manufacturing of pressure switches; without product design. IATF registration 0581014; stated expiry: 18 August 2028. This is a management-system certificate, not an individual product certificate.

IATF 16949:2016 certificate - Ningbo Hongyuan Auto Electronic Technology Co., Ltd.
