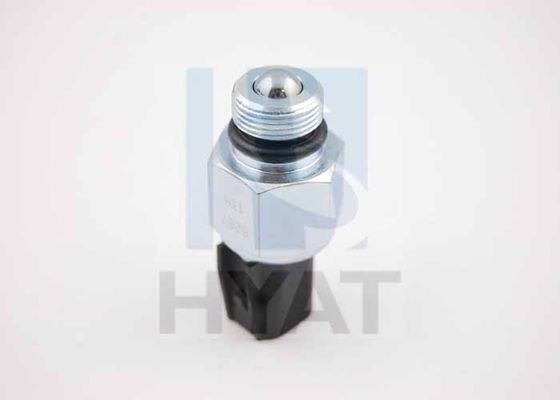

Normal Opened Reversing Light Switch OE 1 227 274/C2S 44687/30774466

Large Image : Normal Opened Reversing Light Switch OE 1 227 274/C2S 44687/30774466

Product Details:

Place of Origin:	CHINA
Brand Name:	HYAT
Certification:	ISO/TS 16949:2009
Model Number:	HY 11.057

Payment & Shipping Terms:

Minimum Order Quantity:	200 PCS
Price:	NEGOTIATION
Packaging Details:	WHITE BOX
Delivery Time:	45 DAYS
Payment Terms:	T/T or L/C
Supply Ability:	20000 PER MONTH

Contact Now

Detailed Product Description

OE:

1 227 274

Brand:

Ford

Circuit:

Opened

High Light:

back up light switch

reversing light switch

Vehicle reverse light switch for FORD OE 1 227 274/1 406 051/1 444 282

Quick Detail:

Name: Reversing light switch
Part Type: Automatic transmission switch
OE Number: 1 227 274
Main Material: Plastic and Steel
Normal Opened/Locked: Opened
Certificate: ISO/TS 16949:2009

Main Introduction

The purpose of any reverse light switch is to turn on the back lights located at the rear of the vehicle.

These lights warn the driver of the car traveling behind, that the vehicle in front is reversing and we should pay attention to it.

Specifications

Model Number	HY11.057
Part Type	Automatic transmission switch
Operating Mode	Mechanical
Control type	Pressure switch control
Normal condition	Opened
Main Material	Plastic and Steel
Number of ports	2
Spanner size	22
Thread size	M16x1
Cable wire	none
OEM Vehicle Brand	FORD,LAND ROVER,MAZDA
Warranty	1 year
Market	Aftermarket

OE and APPLICATION

FORD

1 227 274

1 406 051

1 444 282

1 805 255

3S7T-15520-AB

6M2T-15520-BA

CM5T-15520-BA

JAGUAR

C2S 44687

C2S 45412

for for VOLVO

30774466

FORD		FORD
C-MAX I	2007->	TRANSIT CUSTOM	2012->
C-MAX II	2010->	TRANSIT TOURNEO	2006->
FIESTA VI	2008->	TRANSIT VII	2006->
FOCUS C-MAX	2003->2007	JAGUAR
FOCUS II	2004->	X-TYPE	2005->2009
FOCUS III	2011->	for for VOLVO
GALAXY II	2006->	C30	2010->2012
GRAND C-MAX	2010->	C70 II	2008->
KUGA I	2008->	S40 II	2005->
KUGA II	2013->	S60 II	2010->
MONDEO II	2000->2007	S80 II	2008->
MONDEO III	2007->	V50	2004->
S-MAX	2006->	V60	2010->
TOURNEO CUSTOM	2012->	V70 III	2007->

Quality Standard

As we are OEM manufactory, we also keep aftermarket switch’s quality standard to OEM level. All of switch produced base on OEM processing, production line and inspection. Function inspection will be done for every switch before shipment.

97% of our switch can use more than 100,000,000 cycles.

R&D

We have a complete and experienced R&D team and one lab for auto switch and auto sensor. It effect to high efficiency and precision for analyzing and development of new product.
